Play Structure Anton

Play Structure Anton – Nature

Compact play unit with a single slide, climbing wall and crawl tunnel – a space-saving all-rounder for smaller play areas.

• Age: 3+
• Max. free fall height: 120 cm

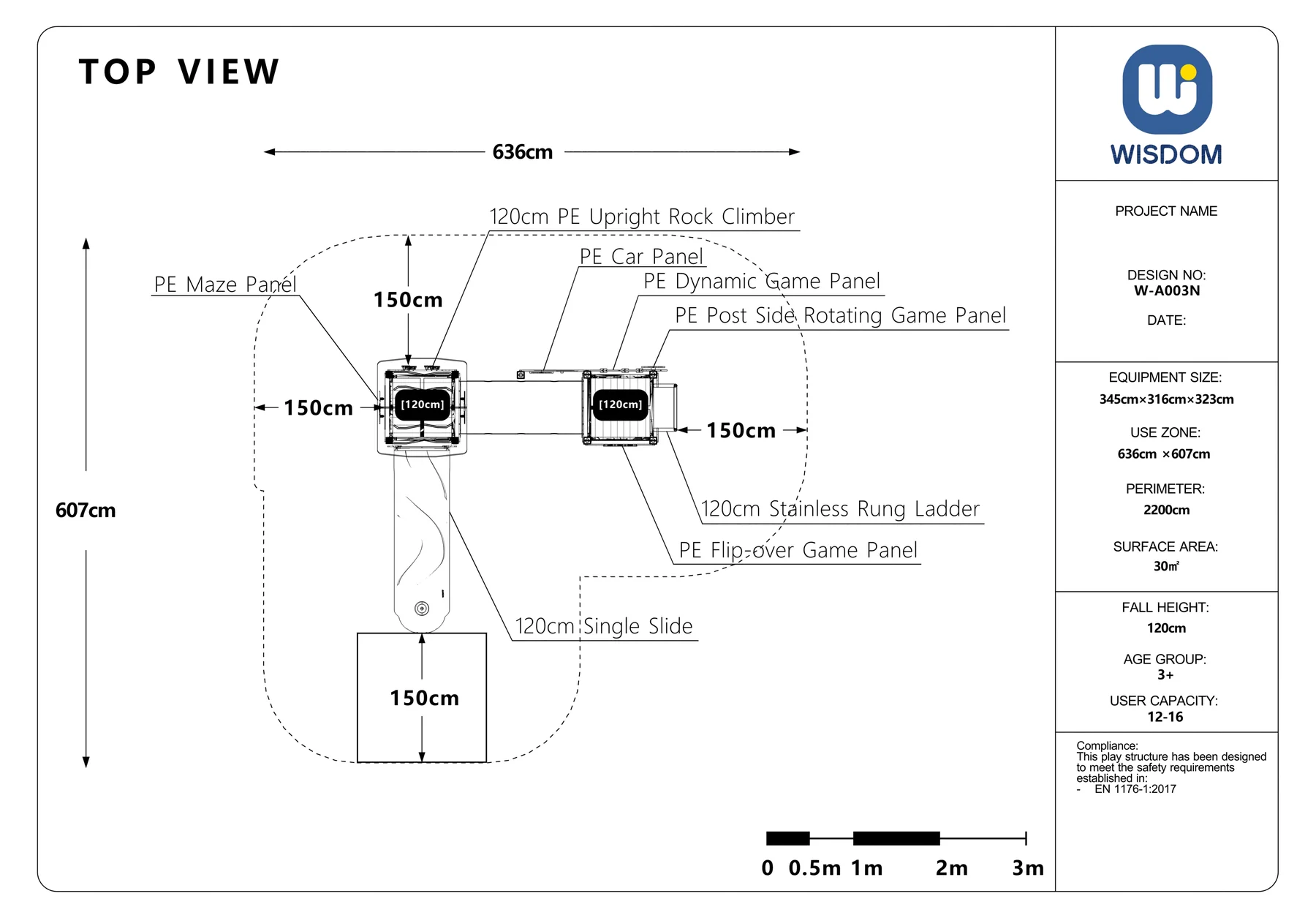

• Safety zone: 636×607 cm
• Product dimensions: 345×316×323 cm
• Capacity: 12-16 children

Supply and professional installation of a playground unit (combination play structure) 'Play unit with a single slide, climbing wall and crawl tunnel' (or equivalent), model no. W-A003N. Also available in the 'Primary' colour variant (item no. W-A003P).

• Construction made of high-quality, square, galvanised steel posts 80 × 80 mm, capped with polypropylene plugs.
• Platforms (76 × 76 cm) made of eco-friendly WPC with long-lasting, slip-resistant and water-resistant properties – recyclable, low-emission and environmentally friendly.
• Roofs made of PE or HDPE.
• Slides and crawl tunnels made of HDPE.
• Moving elements made of durable, weather-resistant PE.
• Climbing net and rung ladder made of stainless steel; fire pole and climbing ladder also made of stainless steel.
• Polypropylene safety end caps provide a smooth, impact-resistant cover and increase safety during play.
• Steel cables with a polypropylene coating, connected with durable plastic or stainless-steel elements.

• Product dimensions: 345×316×323 cm (L×B×H)
• Required safety zone/fall space: 636×607 cm
• Max. free fall height: 120 cm
• Platform height: 120 cm
• Recommended age: 3+
• User capacity: 12-16 children
• Features: Roofs: 1 · Slides: 1 · Activity elements: 2
• Number of posts: 9
• Number of (additional) foundations: 3

Design, testing and certification in accordance with EN 1176 by the accredited testing body TÜV SÜD Product Service GmbH; certificate no. Z2 126190 0008 Rev. 00, test report no. 703002506803-00, valid until 2030-08-31. Construction free of crushing, shearing and entrapment points as well as sharp edges in accordance with EN 1176-1. The unit must be set in foundations and anchored on level ground. Suitable for people with disabilities; designed for public playgrounds.

Anchoring on level ground using foundations/ground anchors in accordance with the installation instructions (to be provided on site, unless otherwise agreed). Shock-absorbing impact-attenuating surfacing in accordance with EN 1176-1/EN 1177 must be matched to the max. fall height and provided on site.

Manufacturer's warranty tiered by component: 15 years on robinia/HPL/HDPE/aluminium components and steel play structures; 10 years on pine wood, galvanised/painted steel parts, stainless-steel slides and LLDPE/WPC/PC components; 5 years on ropes, nets and springs; 2 years on moving parts (subject to the manufacturer's warranty terms). Spare parts available long-term.

Complete delivery including anchoring elements and installation instructions; installation by the manufacturer's specialist personnel (on request) or by the contractor.

Manufacturer: Wisdom Education Europe GmbH, Chemnitz (Wisdom Playgrounds International).
