Play Structure Saga

Play Structure Saga

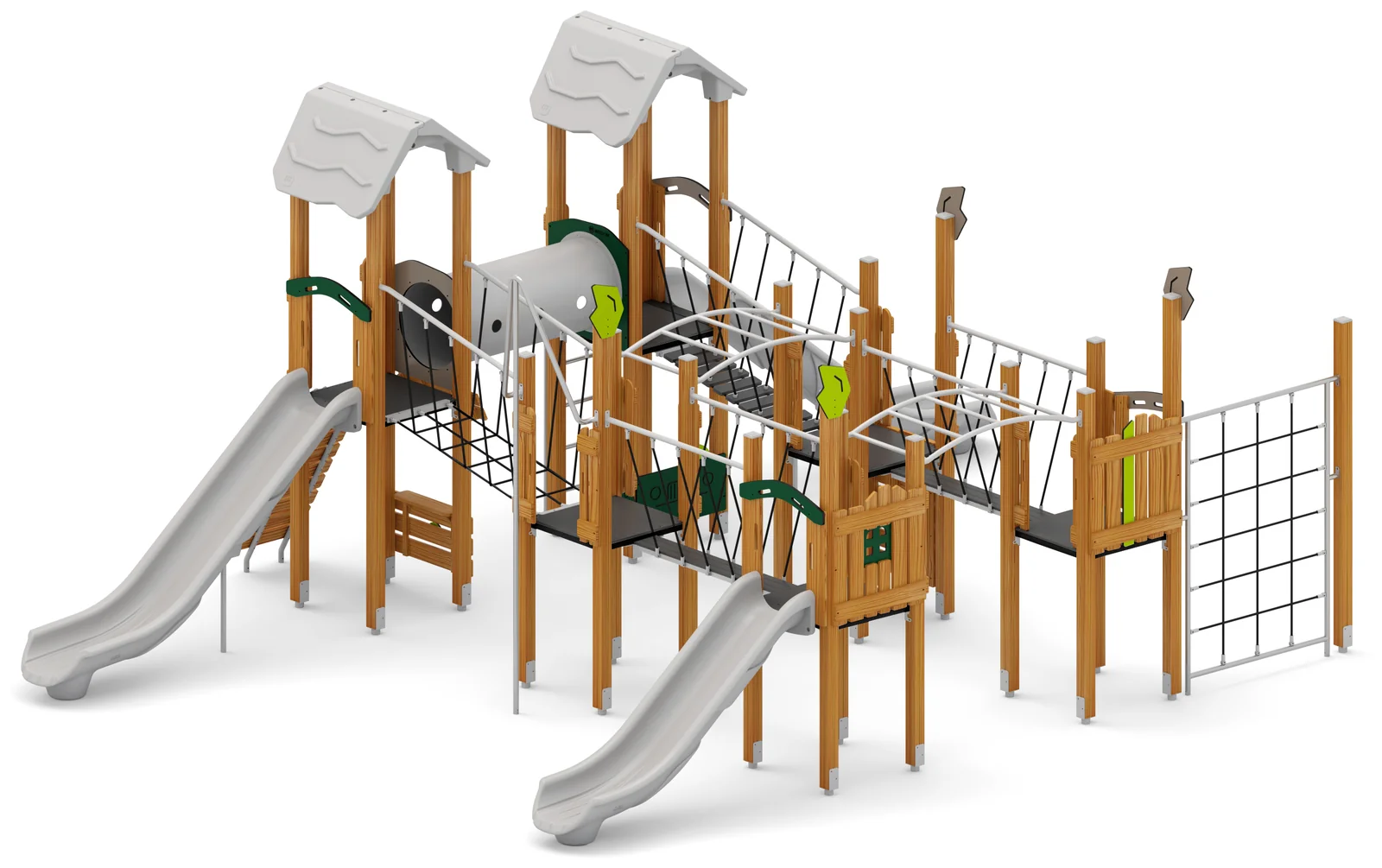

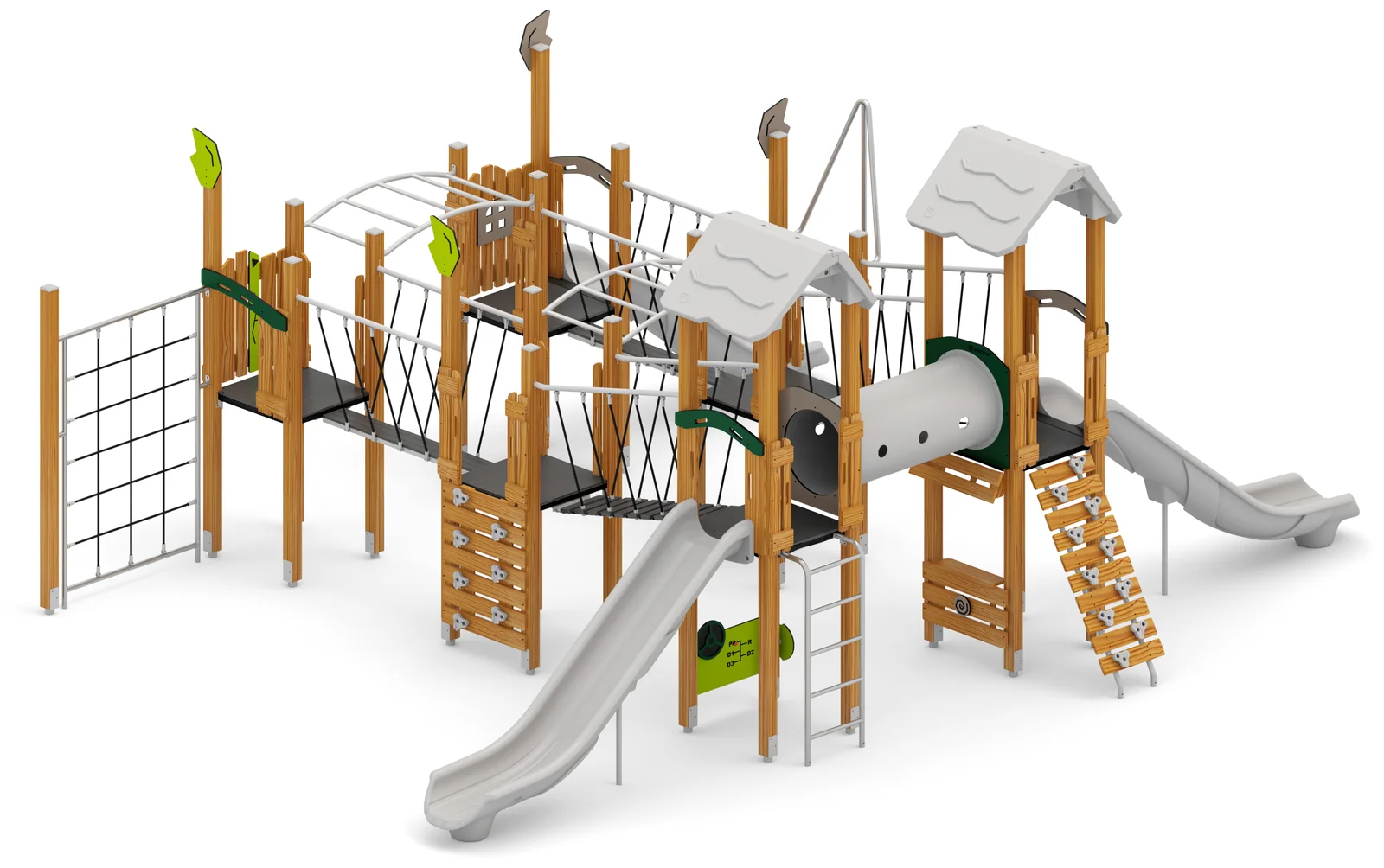

Three single slides, a beam bridge and a crawl tunnel offer plenty of space for climbing, balancing and sliding together (5 activities). The generously sized Wise Kidz solid timber structure is particularly suitable for busy public playgrounds.

Age: 3+

Max. free fall height: 240 cm

Safety zone: 1153×922 cm

Product dimensions: 853×633×360 cm

Capacity: 42-46 children

Supply and professional installation of a playground unit (combination play structure) "Play equipment with single slides, beam bridge and crawl tunnel" (or equivalent), model no. W-B012.

• Construction made of high-quality laminated, impregnated and double-coated pine timber 90 × 90 mm, secured at the top with polypropylene caps.
• Galvanised steel ground anchors protect the timber from direct ground contact, prevent rot and extend the service life of the product.
• Platforms (76 × 76 cm) made of eco-friendly WPC with durable, slip-resistant and water-resistant properties – recyclable, low-emission and environmentally friendly.
• Roofs made of timber, PE or HDPE.
• Slides and crawl tunnels made of durable HDPE.
• Moving elements made of durable, weather-resistant PE.
• Climbing net and rung ladder made of stainless steel; fireman's pole and climbing ladder also made of stainless steel.
• Polypropylene safety end caps provide a smooth, impact-resistant cover and increase safety during play.
• Steel ropes with polypropylene sheathing, connected with durable plastic or stainless-steel elements.
• Solid timber components (pine/robinia) from FSC-certified forestry (FSC licence code FSC-C041158).

• Product dimensions: 853×633×360 cm (L×W×H)
• Required safety zone/fall space: 1153×922 cm
• Max. free fall height: 240 cm
• Platform height: 150 cm
• Recommended age: from 3 years
• User capacity: 42-46 children simultaneously
• Features: Roofs: 2 · Slides: 3 · Activity elements: 5
• Number of posts: 24
• Number of (additional) foundations: 12

Design, testing and certification according to EN 1176 by the accredited test body TÜV SÜD Product Service GmbH; certificate no. Z2 126190 0007 Rev. 00, test report no. 703002506802-00, valid until 2030-08-31. Construction free of crush, shear and entrapment points as well as sharp edges in accordance with EN 1176-1. The unit must be founded and anchored on level ground. Suitable for people with disabilities; designed for public playgrounds.

Anchoring on level ground by means of foundations/ground anchors according to the assembly instructions (by others, unless otherwise agreed). Impact-absorbing safety surfacing in accordance with EN 1176-1/EN 1177 must be matched to the max. fall height and provided by others.

Manufacturer's warranty tiered by component: 15 years on robinia/HPL/HDPE/aluminium components and steel play structures; 10 years on pine wood, galvanised/painted steel parts, stainless-steel slides and LLDPE/WPC/PC components; 5 years on ropes, nets and springs; 2 years on moving parts (in accordance with the manufacturer's warranty terms). Spare parts available long-term.

Complete delivery including anchoring elements and assembly instructions; installation by the manufacturer's specialist personnel (on request) or by the contractor.

Manufacturer: Wisdom Education Europe GmbH, Chemnitz (Wisdom Playgrounds International).
